Component Handlers

A component developer creates a Top Level Actor (TLA) by inheriting from an abstract class ComponentHandlers or JComponentHandlers for Scala or Java, respectively. Each of these abstract classes provides several handler methods that can be overridden by the developer to provide component-specific code as described below.

Component Lifecycle

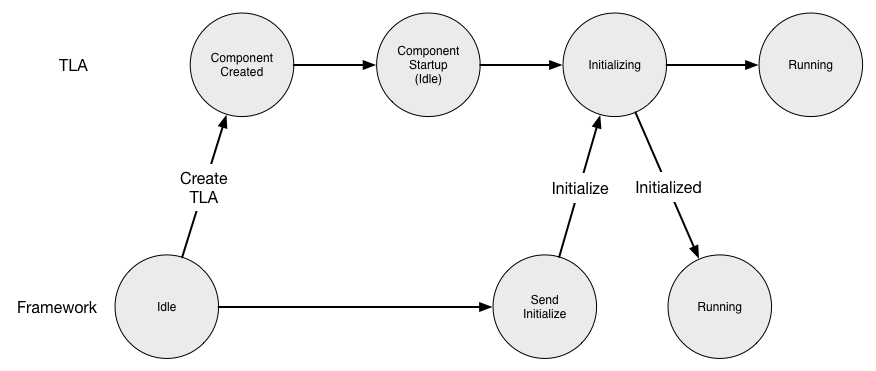

For each component, the CSW framework creates a Supervisor that creates the TLA, and along with the abstract behavior class provided by the framework, it starts up and intiailizes the component in a standardized way. At the conclusion of the startup of the component, it is ready to receive commands from the outside world. The following figure is used to describe the startup lifecycle interactions between the framework and the TLA.

As described in Creating a Component, in either standalone or when running within a container, a Supervisor is created with a ComponentInfo file. The figure shows that the Supervisor in the framework creates the specified TLA. Once the TLA is created, the framework calls the initialize handler. This is the oportunity for the component to perform initialization needed before it is ready to receive commands.

The TLA indicates a successful initialize by returning. If it cannot initialize, it can throw an exception, which will be caught and logged. The Supervisor will retry the creation and initialization of the TLA three times. If it fails after three times processing stops.

When initialize succeeds, the Supervisor in the framework and the component itself enter the Running state. When in the Running state, commands received from outside the component are passed to the TLA (see below).

initialize

The initialize handler is invoked when the component is created. This is different than constructor initialization to allow non-blocking asynchronous operations. The component can initialize state such as configuration to be fetched from Configuration Service, location of components or services to be fetched from Location Service etc. These vary from component to component.

Assembly/Scala

override def initialize(): Future[Unit] = async {

  // Initialization could include following steps :

  // 1. fetch config (preferably from configuration service)
  val calculationConfig = await(getAssemblyConfig)

  // 2. create a worker actor which is used by this assembly
  val worker: ActorRef[WorkerActorMsg] = ctx.spawnAnonymous(WorkerActor.behavior(calculationConfig))

  // 3. find a Hcd connection from the connections provided in componentInfo
  val maybeConnection =
    componentInfo.connections.find(connection ⇒ connection.componentId.componentType == ComponentType.HCD)

  // 4. If an Hcd is found as a connection, resolve its location from location service and create other
  // required worker actors required by this assembly

  maybeConnection match {
    case Some(_) ⇒
      resolveHcd().map {
        case Some(hcd) ⇒
          runningHcds = runningHcds.updated(maybeConnection.get, Some(CommandServiceFactory.make(hcd)(ctx.system)))
          diagnosticsPublisher = ctx.spawnAnonymous(DiagnosticsPublisher.behavior(runningHcds(maybeConnection.get).get, worker))
          commandHandler = ctx.spawnAnonymous(CommandHandler.behavior(calculationConfig, runningHcds(maybeConnection.get)))
        case None ⇒ // do something
      }
    case None ⇒ Future.successful(Unit)
  }

}

Assembly/Java

@Override
public CompletableFuture<Void> jInitialize() {

    // fetch config (preferably from configuration service)
    CompletableFuture<ConfigData> configDataCompletableFuture = getAssemblyConfig();

    // create a worker actor which is used by this assembly
    CompletableFuture<ActorRef<WorkerActorMsg>> worker =
            configDataCompletableFuture.thenApply(config -> ctx.spawnAnonymous(WorkerActor.behavior(config)));

    // find a Hcd connection from the connections provided in componentInfo
    Optional<Connection> mayBeConnection = componentInfo.getConnections().stream()
            .filter(connection -> connection.componentId().componentType() == JComponentType.HCD)
            .findFirst();

    // If an Hcd is found as a connection, resolve its location from location service and create other
    // required worker actors required by this assembly, also subscribe to HCD's filter wheel event stream
    return mayBeConnection.map(connection ->
            worker.thenAcceptBoth(resolveHcd(), (workerActor, hcdLocation) -> {
                if (!hcdLocation.isPresent())
                    throw new HcdNotFoundException();
                else {
                    runningHcds.put(connection, Optional.of(CommandServiceFactory.jMake(hcdLocation.orElseThrow(), ctx.getSystem())));
                }
                diagnosticPublisher = ctx.spawnAnonymous(JDiagnosticsPublisher.behavior(CommandServiceFactory.jMake(hcdLocation.orElseThrow(), ctx.getSystem()), workerActor));
            })).orElseThrow();

}

Hcd/Scala

override def initialize(): Future[Unit] = async {

  // fetch config (preferably from configuration service)
  val hcdConfig = await(getHcdConfig)

  // create a worker actor which is used by this hcd
  val worker: ActorRef[WorkerActorMsg] = ctx.spawnAnonymous(WorkerActor.behavior(hcdConfig))

  // initialise some state by using the worker actor created above
  current = await(worker ? InitialState)
  stats = await(worker ? GetStatistics)

}

Hcd/Java

@Override
public CompletableFuture<Void> jInitialize() {

    // fetch config (preferably from configuration service)
    getConfig().thenAccept(config -> hcdConfig = config);

    // create a worker actor which is used by this hcd
    worker = ctx.spawnAnonymous(WorkerActor.behavior(hcdConfig));

    // initialise some state by using the worker actor created above
    CompletionStage<Integer> askCurrent = AskPattern.ask(worker, WorkerActorMsgs.JInitialState::new, Duration.ofSeconds(5), ctx.getSystem().scheduler());
    CompletableFuture<Void> currentFuture = askCurrent.thenAccept(c -> current = c).toCompletableFuture();

    CompletionStage<Integer> askStats = AskPattern.ask(worker, WorkerActorMsgs.JInitialState::new, Duration.ofSeconds(5), ctx.getSystem().scheduler());
    CompletableFuture<Void> statsFuture = askStats.thenAccept(s -> stats = s).toCompletableFuture();

    return CompletableFuture.allOf(currentFuture, statsFuture);
}

Creation Timeout

The Supervisor waits for the initialize to complete. If it times out, it will retry the creation of the TLA 3 times in the same way as with initialize failures. The timeout value is configurable by the TLA by setting the initializeTimeout value in ComponentInfo.

Location Service Interactions

Once the Supervisor and TLA are in the Running state, the Supervisor registers the component with the Location Service. This allows the component to be located so it can be contacted. Registration with Location Service happens only if locationServiceUsage in ComponentInfo is not set to DoNotRegister.

If the component has connections and locationServiceUsage in ComponentInfo is set to RegisterAndTrackServices, the framework will resolve the components and deliver TrackingEvents to the TLA through the onTrackingEvent onTrackingEvent handler.

Shutting Down

A component may be shutdown by an external administrative program whether it is deployed in a container or standalone. Shutting down may occur when the component is Running/onLine or offLine (see below).

The TLA provides a handler called onShutdown that is called by the Supervisor when shutting down to give the TLA an opportunity to perform any clean up it may require such as freeing resources.

As with initialize the framework will only wait for 10 seconds for the component to return from doShutdown. If it does not return, it is assumed the TLA is damaged. After successful return from doShutdown, the Supervisor deletes the component. The doShutdown timeout cannot be changed.

onShutdown

The onShutdown handler can be used for carrying out the tasks which will allow the component to shutdown gracefully.

Assembly/Scala

override def onShutdown(): Future[Unit] = async {
  // clean up resources
}

Assembly/Java

@Override
public CompletableFuture<Void> jOnShutdown() {
    // clean up resources
    return new CompletableFuture<>();
}

Hcd/Scala

override def onShutdown(): Future[Unit] = async {
  // clean up resources
}

Hcd/Java

@Override
public CompletableFuture<Void> jOnShutdown() {
    return CompletableFuture.runAsync(() -> {
        // clean up resources
    });
}

Restarting

A component may be restarted by an external administrative program whether it is deployed in a container or standalone. A restart may occur when the component is Running/onLine or offLine (see below).

A restart causes the component to be destroyed and re-created with a new TLA. The onShutdown handler is called to allow the component to tidy up before it is destroyed. Then the Supervisor creates a new TLA and the startup proceeds as with initialize above.

Component Online and Offline

Online describes a component that is currently part of the observing system that is in use. When a component enters the Running state it is also “online”.

A component is offline when it is operating and available for active observing but is not currently in use.

If a component is to transition from the online state to the offline state, the onGoOffLine handler is called. The component should make any changes in its operation for offline use.

If a component is to transition from the offline state to the online state, the onGoOnline handler is called. The component should make any changes in its operation needed for online use.

isOnline

A component has access to the isOnline boolean flag, which can be used to determine if the component is in the online or offline state.

onGoOffline

A component can be notified to run in offline mode in case it is not in use. The component can change its behavior if needed as a part of this handler.

Assembly/Scala

override def onGoOffline(): Unit = {
  // do something when going offline
}

Assembly/Java

@Override
public void onGoOffline() {
    // do something when going offline
}

Hcd/Scala

override def onGoOffline(): Unit = {
  // do something when going offline
}

Hcd/Java

@Override
public void onGoOffline() {
    // do something when going offline
}

onGoOnline

A component can be notified to run in online mode again in case it was put to run in offline mode. The component can change its behavior if needed as a part of this handler.

Assembly/Scala

override def onGoOnline(): Unit = {
  // do something when going online
}

Assembly/Java

@Override
public void onGoOnline() {
    // do something when going online
}

Hcd/Scala

override def onGoOnline(): Unit = {
  // do something when going online
}

Hcd/Java

@Override
public void onGoOnline() {
    // do something when going online
}

Handling commands

The remaining handlers are associated with handling incoming commands. There is a handler for submit commands called onSubmit and a handler for oneway called onOneway.

validateCommand

Whenever a command is received by a component it is first validated. The component should inspect the command and its parameters to determine if the actions related to the command can be executed or started. For instance, if an Assembly or HCD can only handle one command at a time, validateCommand should return an return Invalid if a second command is received.

A command can be sent as a Submit or Oneway message to the component. The onSubmit and onOneway handlers are only called if validateCommand returns Accepted. Oneway messages return their validation response or indicate the component is currently locked as a OnewayResponse. The onSubmit handler can complete the actions immediately by returning a SubmitResponse indicating the final response (Completed, CompletedWithResult, Error). If the command actions require time for processing, the onSubmit handler returns Started indicating to the framework that there are long-running actions. More information about sending commands using CommandService is here

Assembly/Scala

override def validateCommand(controlCommand: ControlCommand): ValidateCommandResponse = controlCommand match {
  case _: Setup   ⇒ Accepted(controlCommand.runId) // validation for setup goes here
  case _: Observe ⇒ Accepted(controlCommand.runId) // validation for observe goes here
}

Assembly/Java

@Override
public CommandResponse.ValidateCommandResponse validateCommand(ControlCommand controlCommand) {
    if (controlCommand instanceof Setup) {
        // validation for setup goes here
        return new CommandResponse.Accepted(controlCommand.runId());
    } else if (controlCommand instanceof Observe) {
        // validation for observe goes here
        return new CommandResponse.Accepted(controlCommand.runId());
    } else {
        return new CommandResponse.Invalid(controlCommand.runId(), new CommandIssue.AssemblyBusyIssue("Command not supported"));
    }
}

Hcd/Scala

override def validateCommand(controlCommand: ControlCommand): ValidateCommandResponse = controlCommand match {
  case _: Setup   ⇒ Accepted(controlCommand.runId) // validation for setup goes here
  case _: Observe ⇒ Accepted(controlCommand.runId) // validation for observe goes here
}

Hcd/Java

@Override
public CommandResponse.ValidateCommandResponse validateCommand(ControlCommand controlCommand) {
    if (controlCommand instanceof Setup) {
        // validation for setup goes here
        return new CommandResponse.Accepted(controlCommand.runId());
    } else if (controlCommand instanceof Observe) {
        // validation for observe goes here
        return new CommandResponse.Accepted(controlCommand.runId());
    } else {
        return new CommandResponse.Invalid(controlCommand.runId(), new CommandIssue.UnsupportedCommandIssue(controlCommand.commandName().name()));
    }
}

If a response can be provided immediately, a final CommandResponse such as CommandCompleted or Error can be sent from this handler.

onSubmit

On receiving a command sent using the submit message, the onSubmit handler is invoked for a component only if the validateCommand handler returns Accepted. The onSubmit handler returns a SubmitResponse indicating if the command is completed immediately, or if it is long-running by returning a Started response. The example shows one way to process Setup and Observe commands separately.

Assembly/Scala

override def onSubmit(controlCommand: ControlCommand): SubmitResponse = controlCommand match {
  case setup: Setup     ⇒ submitSetup(setup)     // includes logic to handle Submit with Setup config command
  case observe: Observe ⇒ submitObserve(observe) // includes logic to handle Submit with Observe config command
}

Assembly/Java

@Override
public CommandResponse.SubmitResponse onSubmit(ControlCommand controlCommand) {
    if (controlCommand instanceof Setup)
        return submitSetup((Setup) controlCommand); // includes logic to handle Submit with Setup config command
    else if (controlCommand instanceof Observe)
        return submitObserve((Observe) controlCommand); // includes logic to handle Submit with Observe config command
    else
        return new CommandResponse.Error(controlCommand.runId(), "Submitted command not supported: " + controlCommand.commandName().name());
}

onOneway

On receiving a command as oneway, the onOneway handler is invoked for a component only if the validateCommand handler returns Accepted. The onOneway handler does not return a value and a command submitted with the oneway does not track completion of actions.

Assembly/Scala

override def onOneway(controlCommand: ControlCommand): Unit = controlCommand match {
  case setup: Setup     ⇒ onewaySetup(setup)     // includes logic to handle Oneway with Setup config command
  case observe: Observe ⇒ onewayObserve(observe) // includes logic to handle Oneway with Observe config command
}

Assembly/Java

@Override
public void onOneway(ControlCommand controlCommand) {
    if (controlCommand instanceof Setup)
        onewaySetup((Setup) controlCommand); // includes logic to handle Oneway with Setup config command
    else if (controlCommand instanceof Observe)
        onewayObserve((Observe) controlCommand); // includes logic to handle Oneway with Observe config command
}

More information on handling commands is provided here.
